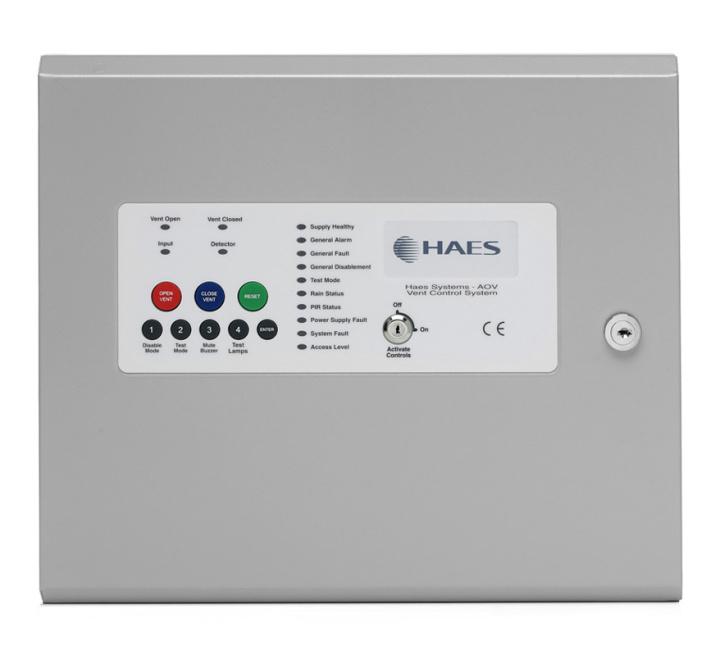

HAES 3A Single Zone Automatic Opening Vent Control Panel (Non-Extendable) (SZAOV-1001)
SKU
SZAOV-1001
£312.47 £260.39
HAES 3A Single Zone Automatic Opening Vent Control Panel (Non-Extendable) (SZAOV-1001)
Product Details for HAES 3A Single Zone Automatic Opening Vent Control Panel (Non-Extendable) (SZAOV-1001)
The HAES SZAOV-1001 is a single detection zone smoke vent control panel with integral 3 amp power supply, designed to control 24vdc actuators or magnets.
The panel has battery backup capability and assures that actuators can be powered in the event of a mains failure.
Vent controls and indications are provided on the front of the control panel and integral control inputs to accept signals from remote contacts, smoke detectors and manual controls.
The SZAOV control panel range has been developed to provide a comprehensive solution to smoke vent control scenarios
Key Features of the SZAOV-1001 |
|---|
| > 3 amp integral PSU > Easy to program > Single detection zone, Conventional or Twin-wire > Input from other detection systems, to activate > Monitored Actuator output for controlling smoke vents > Fireman switch input to override all other inputs > All inputs and actuator outputs monitored for Short and Open Circuit > Thermostat input - Ventilation mode. Vents openable in 10% steps |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | SZAOV-1001 |
| Product Series | HAES AOV |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional/2-Wire |
| Number of Zones | 1 |
| Colour | Grey |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES 3A Single Zone Automatic Opening Vent Control Panel (Non-Extendable) (SZAOV-1001)
No questions yet. Be the first to ask the question!
Product Specification for HAES 3A Single Zone Automatic Opening Vent Control Panel (Non-Extendable) (SZAOV-1001)
| Enclosure | 1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat |
| Cable Entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 310mm W x 300mm H x 80mm D Lid: 317mm W x 309mm H x 25mm D |
| Mains Supply | 3A internal switch mode power supply, Nom 27v DC |
| Battery Capacity | 2 x 7Ah 12v VRLA fire rated |
| Detection Zones | Single monitored detection zone. EOL = 6K8 |
| Twin Wire | Selectable in panel (enables AV devices to be connected to det cct) |
| On Board Relays | 1 x Alarm, 1 x Fault, volt free changeover, Max 3A |
| Fireman’s Switch Input | Fireman’s control switch input for Open/Close/Auto |
| Vent Control Input | Vent control switch input, Open/Close (rocker switch) |
| Actuator Output | Reversal actuator control output (2.5A total max) can be configured as a maintained output for a magnetic door |
| ACT Spec | Monitoring current limit 1.5mA O/C > 10K S/C < 10R |
| Inrush Current | 20A for an interval of 2 seconds |
| Aux Output | 28v, 2.5A. The Aux output should not be used to control sounders |
| False Alarm Management | Type A |
