HAES Esprit Addressable Repeater Panel (ESA-2001)
SKU
ESA-2001
£500.16 £416.80
HAES Esprit Addressable Repeater Panel (ESA-2001)
Product Details for HAES Esprit Addressable Repeater Panel (ESA-2001)

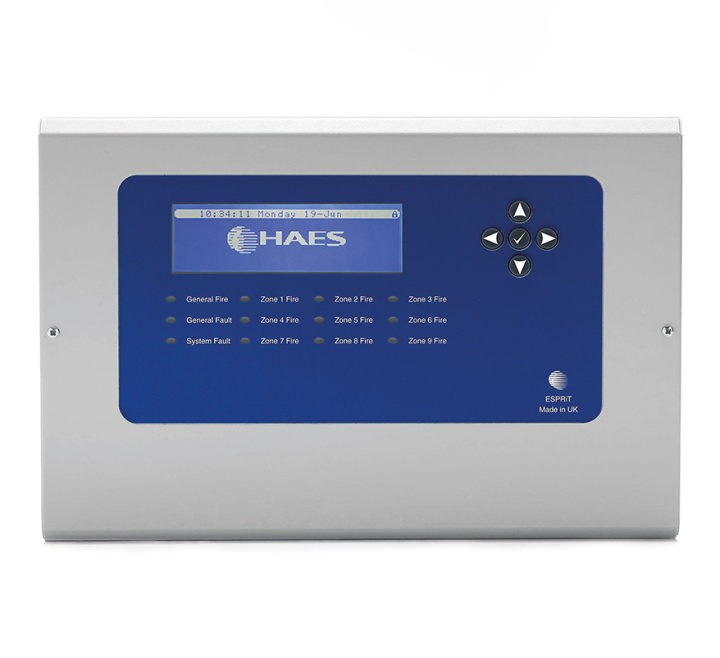

The HAES ESA-2001 is a Networked Repeater Panel for use with any Esprit-A control panel. The repeater’s compact styling makes it ideal for all small and medium site requirements. A large graphical display accommodates an easy-to-navigate menu system.
Key Features of the ESA-2001 |
|---|
| > Large graphical display > All events reported for entire network > Remote control of evacuate, mute buzzer, silence and reset > Externally powered from main control panel > Programmable company logo > Robust metal enclosure |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | ESA-2001 |
| Product Series | Esprit-A |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, Apollo CoreProtocol, Argus Vega |
| Colour | Grey |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Esprit Addressable Repeater Panel (ESA-2001)
No questions yet. Be the first to ask the question!
Product Specification for HAES Esprit Addressable Repeater Panel (ESA-2001)
| Enclosure | 1.2mm Mild Steel IP30. Colour ref MW334E Interpon Powder coat |
| Cable entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 300 W x 202 H x 56 D (mm); with Lid: 306 W x 206 H x 58 D (mm) |
| Power Supply | 28V externally from main control panel auxiliary supply, 100mA max. |
| Display | 240 x 64 Graphical LCD backlit |
