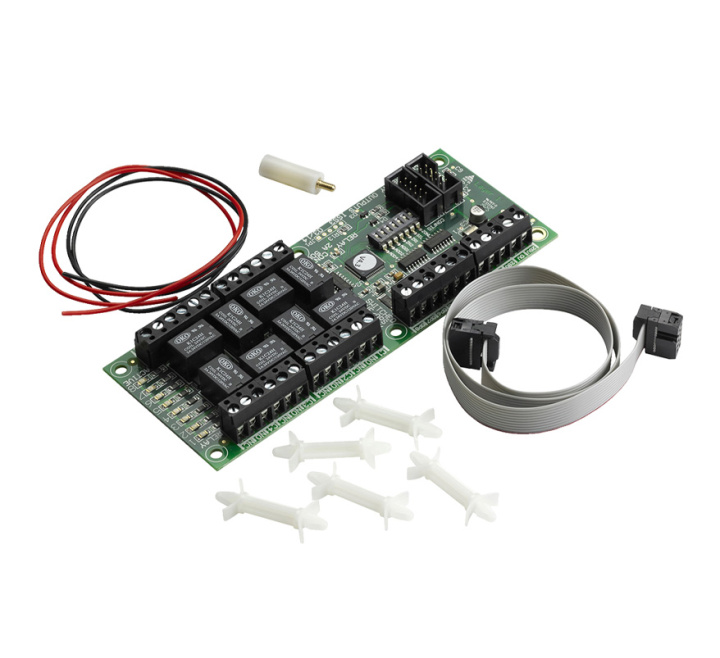

HAES Esento 8 Way Output Extension Card (OPCARD-8)
SKU
OPCARD-8
£153.66 £128.05
HAES Esento 8 Way Output Extension Card (OPCARD-8)
Product Details for HAES Esento 8 Way Output Extension Card (OPCARD-8)
The HAES OPCARD-8 has been designed to provide up to 16 common or zonal outputs. The card consists of 8 x switched -ve outputs and 8 x volt-free change-over relays. A permanent 28v supply is required which can be taken from the 28v output on the main circuit board of the control panel. The card also provides a 28v output which can be utilised if driving additional relays from the sw -ve outputs.
Up to 4 output cards can be fitted to the control panel and linked together to provide up to 32 common or zonal outputs.
The outputs have several configuration options including common or zonal operation. The configurations are set up by a simple DIL switch selection which is described in this document.
Key Features of the OPCARD-8 |
|---|
| > Provides up to 16 common or zonal outputs > 8 x volt free changeover relay outputs plus 8 x switch -ve outputs > Suitable for both HAES conventional (XLEN, XL32) and ESPRiT Addressable panels > Card fits inside control panel > Fit up to four cards inside Excel-32 > Program outputs to cancel on RESET or SILENCE ALARMS |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | OPCARD-8 |
| Product Series | Esento |
| Primary Power Source | 24V DC |
| System Type | Addressable/Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Esento 8 Way Output Extension Card (OPCARD-8)
No questions yet. Be the first to ask the question!
Product Specification for HAES Esento 8 Way Output Extension Card (OPCARD-8)
| Supply Input | Max input current 5A. Input voltage 22 - 32vdc |
| Supply Output | 28v, fused @ 500mA, resettable fuse |
| OP1 - OP8 | Switched -ve outputs, overload voltage protected to 52vdc. Max load = 40mA per output |
| Relay Contacts | 1 - 8 Clean changeover contacts, un-fused. Max 3A @ 30vdc |
