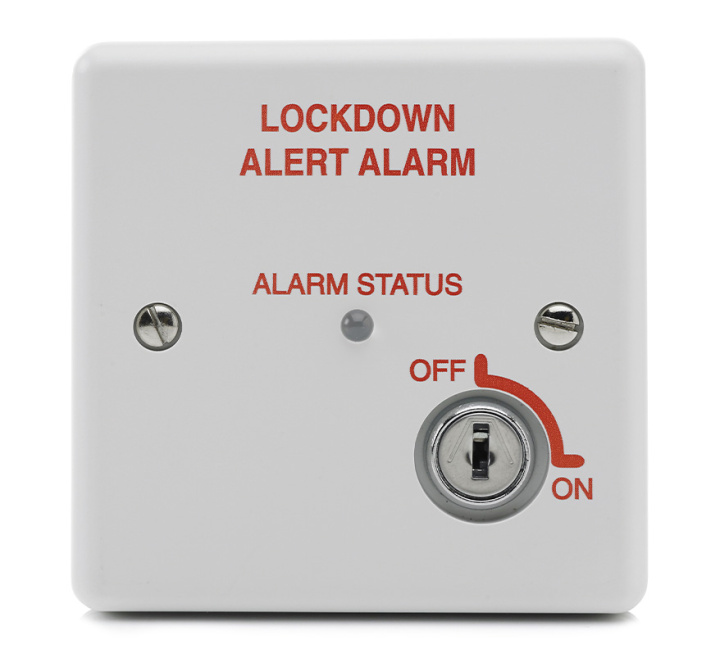

HAES Lockdown Alert Alarm Pulsing Relay (White) (BRLDA)
SKU
BRLDA
£100.63 £83.86
HAES Lockdown Alert Alarm Pulsing Relay (White) (BRLDA)
Product Details for HAES Lockdown Alert Alarm Pulsing Relay (White) (BRLDA)
The HAES BRLDA is a double pole relay unit which has been developed to be used in conjunction with a fire alarm panel to provide a continuous or pulsing alert of the impending lockdown of a building. The unit can be supplied from 17 to 30v dc and triggered via the on-board key switch.
The ON & OFF time of the relay can be individually set via DIL switch up
to 15 seconds.
Key Features of the BRLDA |
|---|
| > 8 amp double pole relay > Key switch activation > Alarm status LED indicator > Use with existing fire alarm control panel > ON & OFF pulsing times independently programmable up to 15 secs > White fire retardant ABS enclosure > Suitable for surface or flush fitting |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | BRLDA |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Lockdown Alert Alarm Pulsing Relay (White) (BRLDA)
No questions yet. Be the first to ask the question!
Product Specification for HAES Lockdown Alert Alarm Pulsing Relay (White) (BRLDA)
| Relay Coil | Rated @ 24v dc - coil resistance = 1440 Ohms +/- 10% |
| Contacts | 250v ac, 8A, VL 10A, double pole changeover |
| Current Consumption | @ 28v Normal: 7.5mA Activated: LED only: 24mA LED + buzzer: 37mA LED + relay: 43mA LED + relay + buzzer: 56mA |
| Enclosure | ROHS compliant FR ABS - 87 W x 87 H x 44 D (mm) |
