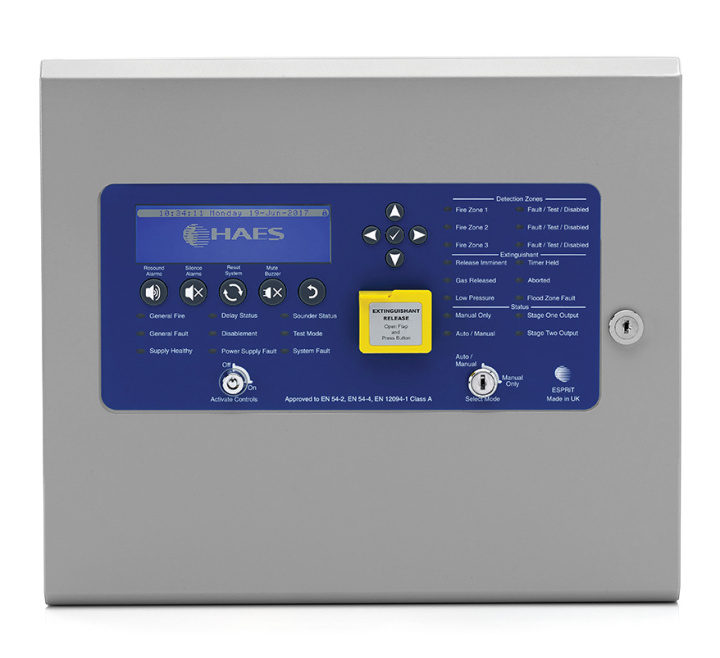

HAES Esprit-G Single Area Automatic Extinguishant Control Panel 1.2A PSU (ESG-1001)
SKU
ESG-1001
£400.70 £333.92
HAES Esprit-G Single Area Automatic Extinguishant Control Panel 1.2A PSU (ESG-1001)
Product Details for HAES Esprit-G Single Area Automatic Extinguishant Control Panel 1.2A PSU (ESG-1001)
The HAES ESG-1001 Esprit extinguishant release control panel is fully configurable to control automatic extinguishant release scenarios.
The single flood area control panel has 3 detection circuits and support for metron and solenoid-type actuators. Programmable countdown timers are provided for Extinguishant Delay, Extinguishant Duration, Flooding Time and Extract Time. The control panel has a large graphical display with easy to navigate menus.
Remote status units are available as well as remote Hold Off & Abort Buttons.
Esprit-G panels support a large range of conventional detectors including, Apollo, Hochiki & Nittan.
The ESG-1001 panel is supplied with a 1.2 amp internal switch mode power supply module. This module complies with the requirements of EN54-4 : 1988 and provides temperature-compensated battery management charging.
Esprit-G panels are approved to European standards; EN12094-1, EN54-2 & EN54-4.
Key Features of the ESG-1001 |
|---|
| > Single flooding area > 3 detection zones > Approved to EN12094-1, EN54- 2, EN54-4 > Fully configurable zone voting for gas release > 4 programmable sounder circuits > Configurable sounder delays > Zero time delay option for manual call points > Compatible with IS barriers > Non-latching zone input option > Extinguishant delay 0-60 seconds > Extinguishant duration 1-300 seconds > Flooding time 60-1800 seconds > Extract time 1-90 minutes > Graphical back lit LCD display > Access controls via key switch or code entry > Time and date stamped event log > Alarm counter > Company logo can be programmed in display > RS 485 communications for remote status units > Key switch status control > Fire, fault & stage signal relays > 2 amp actuator circuit > Hold, abort, flow switch, manual release, mode control and pressure switch monitoring inputs > 1.2 amp PSU for 7Ah batteries |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | ESG-1001 |
| Product Series | Esprit-G |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 3 |
| Colour | Grey |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Esprit-G Single Area Automatic Extinguishant Control Panel 1.2A PSU (ESG-1001)
No questions yet. Be the first to ask the question!
Product Specification for HAES Esprit-G Single Area Automatic Extinguishant Control Panel 1.2A PSU (ESG-1001)
| Enclosure | 1.2mm Mild Steel IP30. Colour ref MW334E Interpon Powder coat |
| Cable Entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 350 W x 300 H x 80 D (mm), Lid: 357 W x 310 H x 25 D (mm) |
| Mains Supply | Universal switch mode PSU, 1.2A |
| Battery Capacity | Up to 7 Ah 24V |
| Charger Current | 700mA |
| Auxiliary Supply | 400mA aux supply output (21-28vdc) |
| Detection Zones | 3 x conventional zones |
| Extinguishing Zones | 1 x flooding/extinguishing zones support for metron & solenoid type actuators |
| Sounder Circuits | 4 x 400mA 21-28vdc |
| On Board Relays | 6 x 1A 30VDC relay outputs, (fire, fault, stage 1 & 2, extract, local) x1 |
| Programmable Outputs | Additional outputs via add on output card, ESG-2005 |
| Switch Inputs | CC, PULS |
| Monitored Inputs | Flow, Pressure, Release, Hold, Abort x 1 |
| Countdown Timers | Extinguishant Delay: 0-60 secs, Extinguishant Duration: 1-300 secs, Flooding Time: 60-1800 secs, Extract Time: 1-90 mins, Reset Inhibit Time: 0-30 mins |
| Event Log | 255 events, time & date stamped |
| Earth Fault Monitoring | Yes |
| Intrinsically Safe Mode | Selectable for detection zones |
| Remote Status Units | Graphic display & Mini version via RS485 up to 16 assignable to area |
| Display | 240 x 64 Graphical LCD backlit |
| Manual Release Button | Onboard under plastic release cover |
