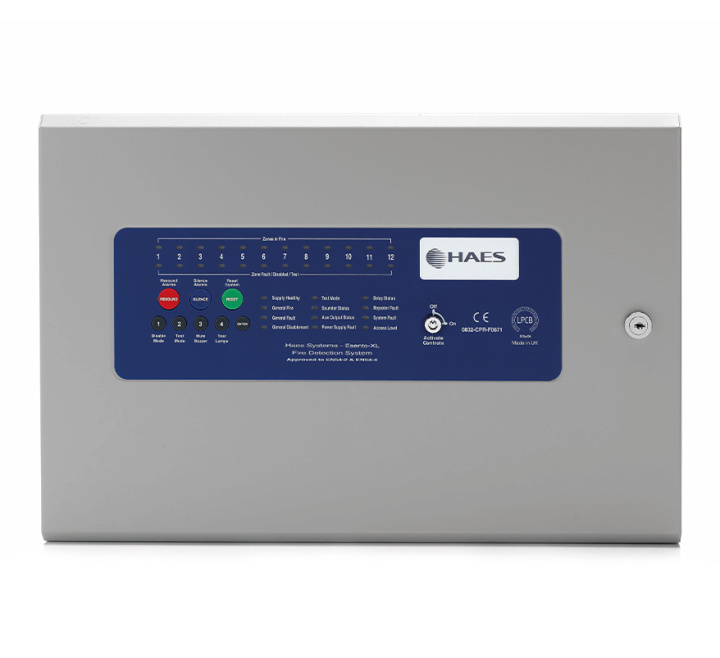

HAES Esento Marine Approved 12 Zone Conventional Fire Panel (ESEN-12MAR)
SKU
ESEN-12MAR
£856.43 £713.69
HAES Esento Marine Approved 12 Zone Conventional Fire Panel (ESEN-12MAR)
Product Details for HAES Esento Marine Approved 12 Zone Conventional Fire Panel (ESEN-12MAR)
The HAES ESEN-12MAR Esento Marine provides 12 conventional fire detection zones. All inputs and outputs are fully programmable and there are options to have delays to the outputs. The programming features also include a muster alarm feature and 3 different modes to help reduce false alarms.
As standard, all Esento Marine 8-12 panels provide four monitored sounder circuits, Fire & Fault VFCO relays, Fire & Fault switched negative outputs and inputs to ring and pulse the sounder circuits.
A fully functional repeater panel is available via a plug in comms PCB.
A separate interface card is also available to connect the panel to a ships voyage data recorder system.
The panels are supplied with a 3.0 amp internal power supply module. This module complies with the requirements of EN54-4 : 1988 and provides temperature-compensated battery management charging.
Esento Marine panels are approved to European standards EN54-2 & 4, Fire Detection and Alarm Systems – Control & Indicating Equipment
Key Features of the ESEN-12MAR |
|---|
| > 12 conventional zones > Network up to 8 control panels > Activate controls via key switch or code entry > Compatible with Apollo Orbis Marine detectors > Integral detector removal monitoring > Earth fault monitoring > 3 Amp switch mode power supply Nom 27V DC > 4 monitored sounder outputs > 2 Aux C/O relays (1 x Fire) (1 x Fault). voltage free > Class change I/P > Alert I/P > Fire & fault switched -ve outputs > Program delays to outputs > False alarm modes A, B & C > Muster alarm > Test mode, with or without sounders > Disable zones, sounder O/Ps, aux O/Ps & delays > Alarm load, 2.4A shared between all sounder outputs > All sounder circuits are fused @ 500mA with resettable fuses |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | ESEN-12MAR |
| Product Series | Esento Marine |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 12 |
| Colour | Grey |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Esento Marine Approved 12 Zone Conventional Fire Panel (ESEN-12MAR)
No questions yet. Be the first to ask the question!
Product Specification for HAES Esento Marine Approved 12 Zone Conventional Fire Panel (ESEN-12MAR)
| Enclosure | 1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat |
| Cable Entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions | Back box: 450mm W x 300mm H x 85mm D, Lid: 460mm W x 310mm H x 25mm D |
| Mains Supply | 3A internal switch mode power supply, Nom 27v DC |
| Battery Capacity | 2 x 7.0Ah 12v VRSLA |
| Detection Zones | 12 x conventional. EOL = 4K7R |
| Sounder Circuits | 4 x monitored, fused @500mA. EOL = 4K7R |
| Networking | Up to 8 control panels, fault-tolerant RS485 communication, requires TPCA05 network card |
| On Board Relays | 2 x programmable, 3A, 30v volt free changeover, additional relay provided on high spec zone card |
| Outputs | 2 x programmable, 40mA switch -ve, 2 additional outputs provided on high spec zone card |
| Switch Inputs | Class change & alert (pulsing) |
| Event Log | 40 event history |
| Intrinsically Safe Mode | Selectable per zone |
| False Alarm Management | Type A, B & C dependency modes, approved by LPCB |
| Delay Timer | On board programmable delay timer 1-10 mins |
| Muster Alarm | Selectable per zone |
