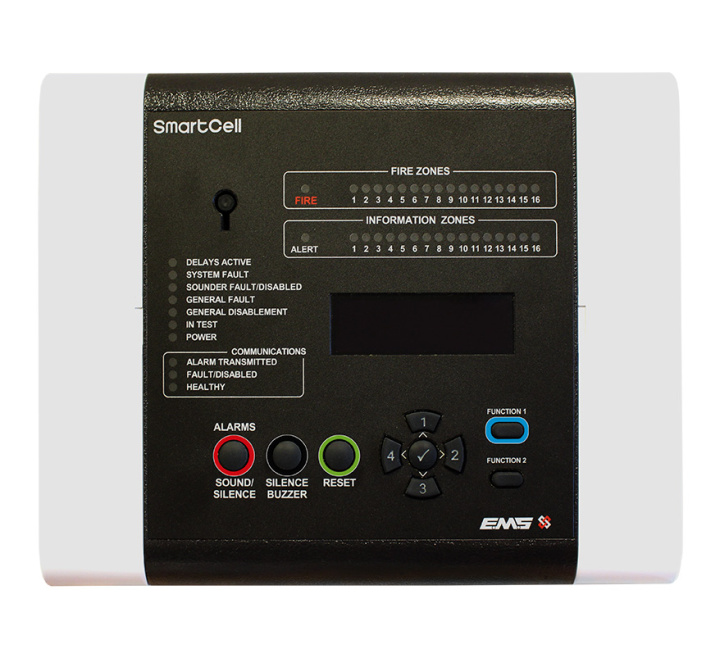

EMS SmartCell Wireless Fire Control Panel 24V (SC-11-2201-0001-99)
SKU
SC-11-2201-0001-99
£400.06 £333.38
EMS SmartCell Wireless Fire Control Panel 24V (SC-11-2201-0001-99)
Product Details for EMS SmartCell Wireless Fire Control Panel 24V (SC-11-2201-0001-99)
The EMS SmartCell SC-11-2201-0001-99 is a 24V fire alarm control panel which is compatible with the full range of wireless EMS SmartCell fire detection and alarm devices and accessories. The control panel can also accommodate an internal communications card for connection to SmartCell Services.
EMS SmartCell has been designed as a complete wireless fire detection system to protect people and property. The system incorporates separate information zones which allow input devices to be configured in multiple configurations, providing maximum flexibility to the user and designer.
A SmartCell system can support up to 64 wireless devices consisting of 32 fire devices and 32 information devices.
Communication between devices and the control panel is bidirectional and operates in the European harmonised 868MHz frequency band.
With significant time saving against conventional and addressable fire system installations, no cables, no mess and no inconvenience to everyday business, SmartCell is perfect for all small to medium sized fire system installations.
Key Features of the SC-11-2201-0001-99 |
|---|
| > 24V DC powered fire alarm control panel > Fully wireless system > Quick and easy to install > Compact enclosure > 80 character OLED display > Compatible with EMS SmartCell wireless fire alarm devices > Accommodates internal communications card for SmartCell Services connection > 230V DC powered version also available |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | SC-11-2201-0001-99 |
| Primary Power Source | 24V DC |
| System Type | Wireless |
| Number of Zones | 16 |
| Protocol Compatibility | SmartCell |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for EMS SmartCell Wireless Fire Control Panel 24V (SC-11-2201-0001-99)
No questions yet. Be the first to ask the question!
Product Specification for EMS SmartCell Wireless Fire Control Panel 24V (SC-11-2201-0001-99)
| User interface | 16 zone indicators |
| Maximum system capacity (device count) | 1 to 32 |
| Power supply type | 24 VDC |
| Operating voltage | 19.2 to 28.8 VDC |
| Current consumption | 0.035 A (quiescent and alarm current) |
| Maximum zone capacity | up to 16 |
| Form factor | Compact |
| Physical dimensions | 275 x 220 x 80 mm (W x H x D) |
| Net weight | 1.45 kg |
| Mounting type | Surface mount |
| Cable entries | 4 x 100 mm (bottom) / 4 x 100 mm (back) |
| Operating temperature | -5°C to +45°C |
| Storage temperature | 0°C to +30°C |
| Relative humidity | 95% noncondensing max. |
| Environment | Indoor |
| IP rating | IP30 |
| Compliancy | CE |
| Certification | CPR |
| Standards | EN54-2 EN54-13 EN54-25 |
| Operating frequency | 868 to 870 MHz |
| Output transmitter power | 14 dBm max. / 25 mW |
