EMS Fusion FCX-532-001 Radio Loop Module
SKU
FCX-532-001
£226.08 £188.40

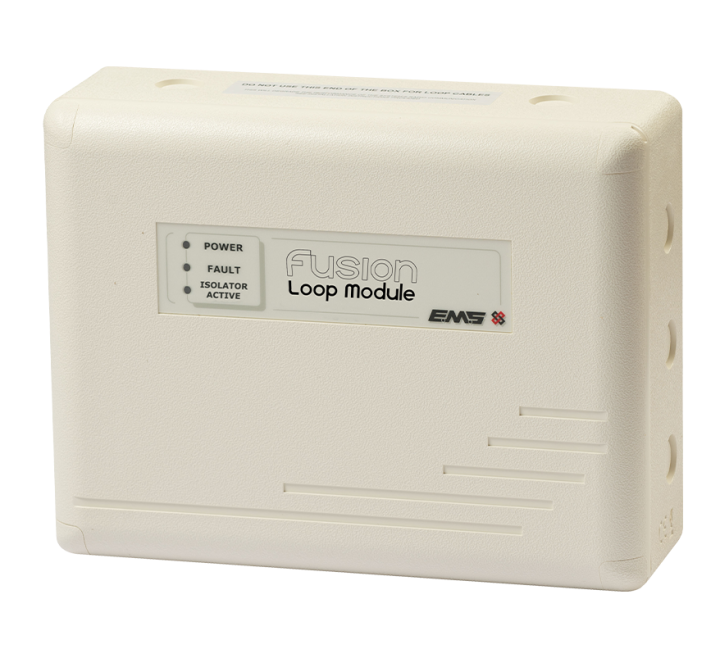

EMS FCX-532-001 Fusion Radio Loop Module
- Buy 10 for £220.50 £183.75 each and save 2%
Product Details for EMS Fusion FCX-532-001 Radio Loop Module
The EMS FCX-532-001 Fusion Radio Loop Module connects to the FireCell Control Panel's XP95 loop, is loop-powered and accommodates up to 31 wireless FireCell devices.
Requiring just 17mA, up to ve Fusion RLMs can be added per loop, subject to cable specication.
This device is third party EN certied, combining diversity aerial methodology and 32 channel selection to produce fast and reliable wireless communication.
Key Features of the FCX-532-001 |
|---|
| > Fusion Radio Loop Module (RLM) > Internal diversity aerials > Up to 31 wireless FireCell devices per RLM > Dual band 868MHz operation > Up to 5 RLMs per loop, subject to cable spec > 32 radio channel selection > EN54-17, EN54-18 & EN54-25 third party certified |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FCX-532-001 |
Write Your Own Review
FAQ’s for EMS Fusion FCX-532-001 Radio Loop Module
No questions yet. Be the first to ask the question!
Product Specification for EMS Fusion FCX-532-001 Radio Loop Module
| Dimensions: | W:270mm x H:205mm x D:75mm |
| Operating voltage: | 17 - 28 VDC |
| Power requirements: | 17mA @ 24 VDC |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP54, indoor use only |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Location: | Type A: Indoor use |
| Weight: | 0.95kg (excluding battery) |
| Certification (3rd party): | EN54-18 & EN54-25 |
