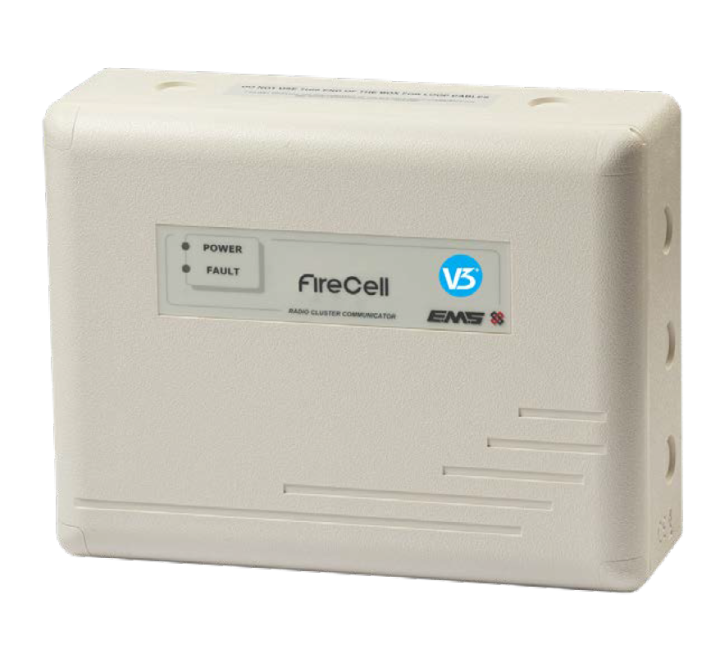

EMS FireCell FC-555-024-V3 Wireless Radio Cluster Communicator 24V DC - V3
SKU
FC-555-024-V3
£221.40 £184.50
EMS FireCell FC-555-024-V3 Wireless Radio Cluster Communicator 24V DC - V3
- Buy 10 for £216.00 £180.00 each and save 2%
Product Details for EMS FireCell FC-555-024-V3 Wireless Radio Cluster Communicator 24V DC - V3
The EMS FireCell FC-555-024-V3 Wireless 24VDC Radio Cluster Communicator (RCC) is a remote transceiver node which works within the FireCell wireless fire system.
The RCC accomodates up to 31 wireless FireCell devices, and can report directly to the Radio Hub or via other RCCs (up to four hops), for optimum exibility and maximum wireless coverage.
This device is third party EN certied, combining diversity aerial methodology, Smart Cluster Technology and 32 channel selection to produce fast and reliable wireless communication.
Key Features of the FC-555-024-V3 |
|---|
| > 24V DC operated > Smart Cluster technology > Up to 31 FireCell devices per RCC > Dual band 868MHz operation > Reports via other RCCs or directly to Radio Hub > 32 radio channel selection > Optional external aerials available > EN54-18 & EN54-25 third party certified |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FC-555-024-V3 |
Write Your Own Review
FAQ’s for EMS FireCell FC-555-024-V3 Wireless Radio Cluster Communicator 24V DC - V3
No questions yet. Be the first to ask the question!
Product Specification for EMS FireCell FC-555-024-V3 Wireless Radio Cluster Communicator 24V DC - V3
| Dimensions: | W:270mm x H:205mm x D:75mm |
| Operating voltage: | 17 - 28 VDC |
| Power requirements: | 17mA @ 24 VDC |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP54, indoor use only |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Application: | Indoor use only |
| Weight: | 0.95kg (excluding battery) |
| Certification (3rd party): | EN54-18 & EN54-25 |
