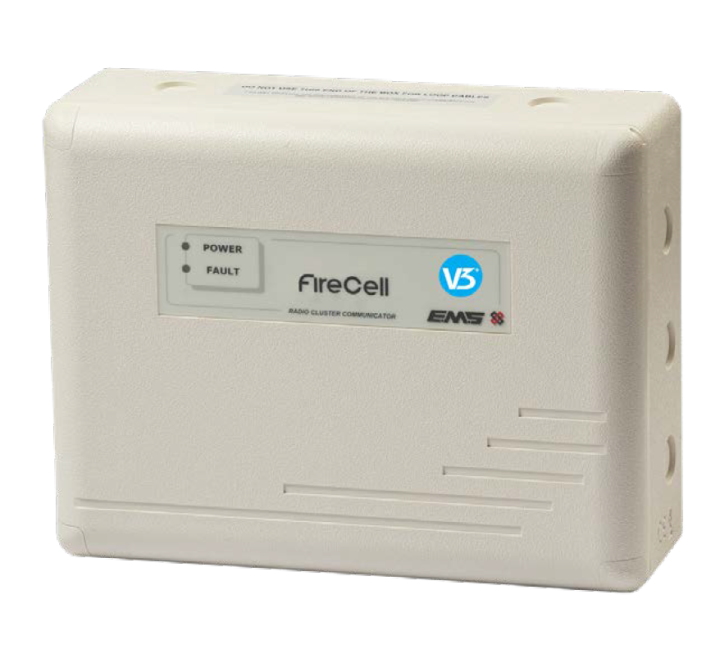

EMS FireCell FC-555-001-V3 Wireless Radio Cluster Communicator 230V AC - V3
SKU
FC-555-001-V3
£263.04 £219.20
EMS FireCell FC-555-001-V3 Wireless Radio Cluster Communicator 230V AC - V3
Product Details for EMS FireCell FC-555-001-V3 Wireless Radio Cluster Communicator 230V AC - V3
The EMS FireCell FC-555-001-V3 Wireless 230VAC Radio Cluster Communicator (RCC) is a remote transceiver node which works within the FireCell wireless fire system.
The RCC accomodates up to 31 wireless FireCell devices, and can report directly to the Radio Hub or via other RCCs (up to four hops), for optimum exibility and maximum wireless coverage. This device is third party EN certied, combining diversity aerial methodology, Smart Cluster Technology and 32 channel selection to produce fast and reliable wireless communication.
This device is third party EN certied, combining diversity aerial methodology, Smart Cluster Technology and 32 channel selection to produce fast and reliable wireless communication.
Key Features of the FC-555-001-V3 |
|---|
| > 230V AC operated > 72 hr battery backup > Smart cluster technology > Up to 31 FireCell devices per RCC > Dual band 868MHz operation > Reports via other RCCs or directly to Radio Hub > 32 radio channel selection > EN54-5, EN54-18 & EN54-25 third party certified |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FC-555-001-V3 |
Write Your Own Review
FAQ’s for EMS FireCell FC-555-001-V3 Wireless Radio Cluster Communicator 230V AC - V3
No questions yet. Be the first to ask the question!
Product Specification for EMS FireCell FC-555-001-V3 Wireless Radio Cluster Communicator 230V AC - V3
| Dimensions: | W:270mm x H:205mm x D:75mm |
| Power requirements: | Mains 220 - 240 VAC ~ 50Hz |
| Current consumption: | 44mA (normal operation) 55.5 mA (with mains disconnected) |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP54, indoor use only |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Battery backup: | 1 x 6V 4Ah Huasa NP4-6 (sold separately) |
| Battery standby time: | 72 hrs (typical 5 yr battery life, normal usage. If 72 hrs battery standby required, replace battery every 3 years. |
| Location: | Type A : for indoor use |
| Weight: | 1.15kg (excluding battery) |
| Certification (3rd party): | EN54-5, EN54-18 & EN54-25 |
