EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
SKU
FC-60-1000
£108.90 £90.75

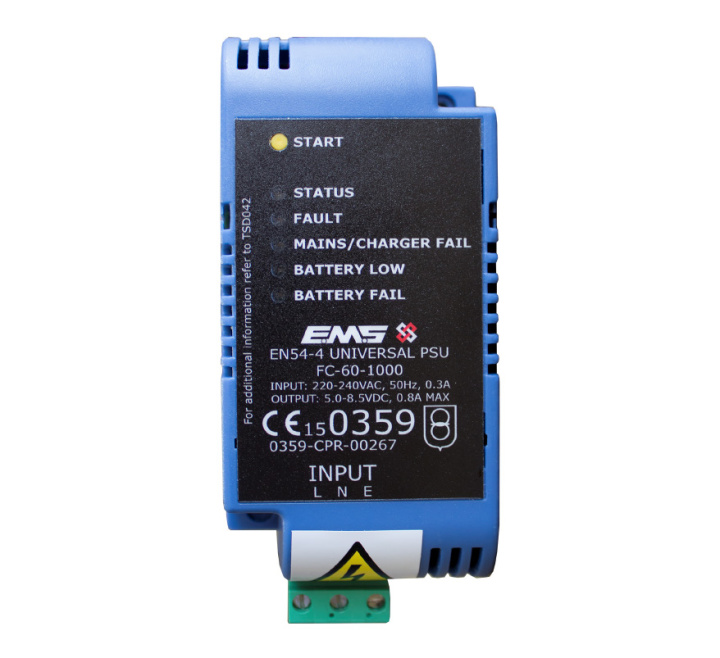

EMS FireCell FC-60-1000 Universal PSU for Radio Cluster Communicator (RCC)
- Buy 10 for £104.71 £87.26 each and save 4%
Product Details for EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
The EMS FireCell FC-60-1000 is a 6vDC Universal Power Supply Unit (PSU) for use with the FireCell Radio Cluster Communicator (RCC).
Key Features of the FC-60-1000 |
|---|
| > FireCell Universal Power Supply Unit (PSU) > 6v DC output voltage to the Radio Cluster Communicator PCB > Use with FireCell Radio Cluster Communicator (RCC) > Provides the Radio Cluster Communicator with a 72 hour standby time > Mounting possible in either orientation to allow mains entry from the left or right-hand side of the product. |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FC-60-1000 |
Write Your Own Review
FAQ’s for EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
No questions yet. Be the first to ask the question!
Product Specification for EMS FireCell Universal 6V PSU for Radio Cluster Communicator (RCC) (FC-60-1000)
| Operating Temperature | -10˚c to 50˚c (ambient) |
| Power Requirements | Mains Powered 220-240V AC |
| Min/Max Electrical Ratings | Input: 220-240V AC, 50Hz, 0.3A Output Current: Imin 0.0 Amps, Imaxa 0.8Amps, Imaxb 0.8Amps |
| Input / Output Fuse Ratings | Input: T3.15A (Non replaceable) Output: 300mA and 750mA Max (Resettable) |
| Battery Backup | 1 x 6V 4Ah Yuasa NP4-6 FR, or 1 x 6V 4Ah Yucel Y4-6 |
| Battery Standby Time | 72 hours |
| Maximum Battery Internal Resistance | 0.7 Ohms |
| Maximum Current Drawn from the Battery by the PSE with Mains Disconnected | 5mA (PSU), plus 100mA (RCC PCB) |
| Dimensions | 53mm (W) 110mm (H) 39mm (D) |
| Weight | 150g |
