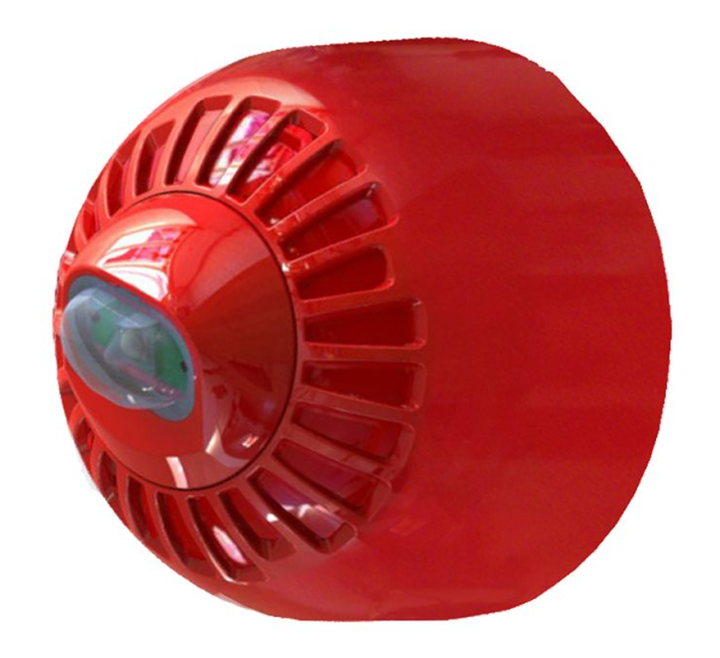

EMS FireCell FC-323-WA2 Red Wall Mounted VAD (Head Only)
SKU
FC-323-WA2
£80.40 £67.00
EMS FireCell FC-323-WA2 Red Wall Beacon Head Only
- Buy 10 for £79.20 £66.00 each and save 1%
Product Details for EMS FireCell FC-323-WA2 Red Wall Mounted VAD (Head Only)
The EMS FireCell FC-323-WA2 is a wall mounted category W-3.1-11.3 VAD only which is quick and easy to install. Features include dual band 868MHz operation, auto adjusting power output, 0.5Hz/1Hz beacon flash selection and anti tamper locking mechanism.
This device is third party EN certified and compatible with the EMS FireCell system, EMS Fusion Radio Loop Module (RLM) and EMS Wireless Zone Monitor (WZM).
Key Features of the FC-323-WA2 |
|---|
| > Red VAD head only > Wall mounted applications > Category W-3.1-11.3 > Dual band 868MHz operation > Anti tamper locking mechanism > Third party EN certified > 0.5Hz/1Hz beacon flash selection |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FC-323-WA2 |
Write Your Own Review
FAQ’s for EMS FireCell FC-323-WA2 Red Wall Mounted VAD (Head Only)
No questions yet. Be the first to ask the question!
Product Specification for EMS FireCell FC-323-WA2 Red Wall Mounted VAD (Head Only)
| Dimensions: | Ø:120mm x D:145mm |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance | 3 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial) & 3 x C alkaline (Panasonic LR14AD Powerline / Varta 4014 Industrial) |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
| Beacon element current max. | 40mA @ 1Hz flash rate |
| Beacon coverage: | 3.1 - 11.3 |
| Flash rate: | 0.5Hz / 1Hz (selectable) |
| IP Rating: | IP54 |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Location: | Type A: for indoor use |
| Weight: | 0.65 kg |
