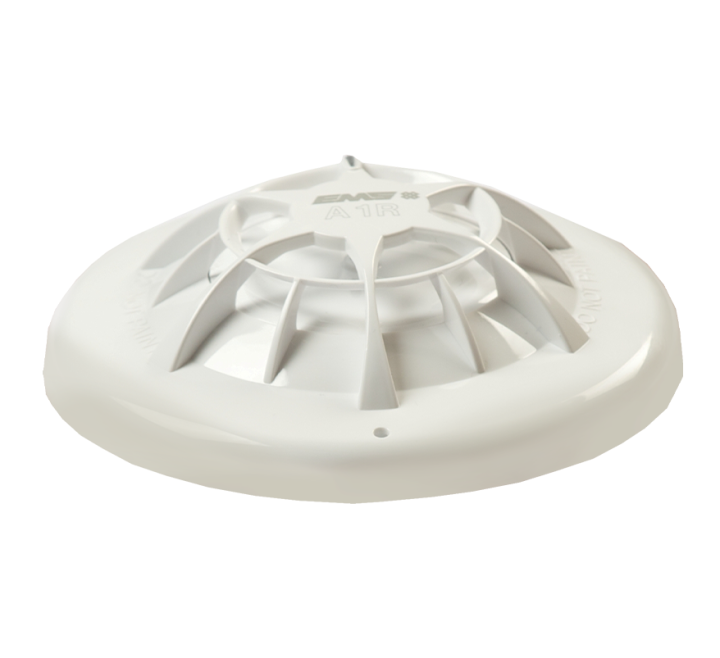

EMS FireCell FCX-175-001 Class A1R Heat Detector (Head Only)
SKU
FCX-175-001
£36.84 £30.70
EMS FireCell FCX-175-001 Class A1R Heat Detector (Head Only)
- Buy 10 for £35.99 £29.99 each and save 2%
Product Details for EMS FireCell FCX-175-001 Class A1R Heat Detector (Head Only)
The EMS FireCell FCX-175-001 is a Class A1R rate of rise heat detector only. Wireless base supplied separately.
The FireCell Wireless Heat Detector is quick and easy to install and offers individual addressing at the Fire Control Panel. Features include dual band 868MHz operation, auto adjusting power output, re indication LED, anti tamper locking mechanism and the FasTest detector maintenance feature. This device is third party EN certied and compatible with the EMS FireCell system, EMS Fusion Radio Loop Module (RLM) and EMS Wireless Zone Monitor (WZM).
Key Features of the FCX-175-001 |
|---|
| > Class A1R Heat Detector > Rate of rise > Detector head only > Dual band 868MHz > Fire indication LED > Anti tamper locking mechanism > FasTest maintenance feature > Easy to install > EN54-5 & EN54-25 certified (3rd party) > Wireless base available separately |
| Brand | EMS |
|---|---|
| Manufacturer Part No. | FCX-175-001 |
Write Your Own Review
FAQ’s for EMS FireCell FCX-175-001 Class A1R Heat Detector (Head Only)
No questions yet. Be the first to ask the question!
Product Specification for EMS FireCell FCX-175-001 Class A1R Heat Detector (Head Only)
| Dimensions: | Ø:113mm x D:41mm (excl base) Ø:113mm x D:81mm (incl base) |
| Supply: Caution: Fitting of incorrect battery type invalidates the product certification & may result in poor performance | 6 x AA alkaline batteries (Panasonic LR6AD Powerline / Varta 4006 Industrial) |
| Operating frequency: | 868 MHz |
| Output transmitter power: | Variable 0 to 14dBm (0 to 25mW) |
| IP Rating: | IP23, indoor use only |
| Operating temperature: | -10oC to +55oC |
| Storage temperature: | 5oC to 30oC |
| Humidity: | 0 - 95% non-condensing |
| Weight: | 0.40 kg (with base) |
| Certification (3rd party): | EN54-5 & EN54-25 |
| Application Temperature oC: | Typical: 25 Max: 50 |
| Static Response Temperature oC: | Min: 54 Typical: 57 Max: 65 |
