HAES Boxed 8A Relay With Isolate Key Switch (Red) (BRISOL-R)
SKU
BRISOL-R
£83.98 £69.98

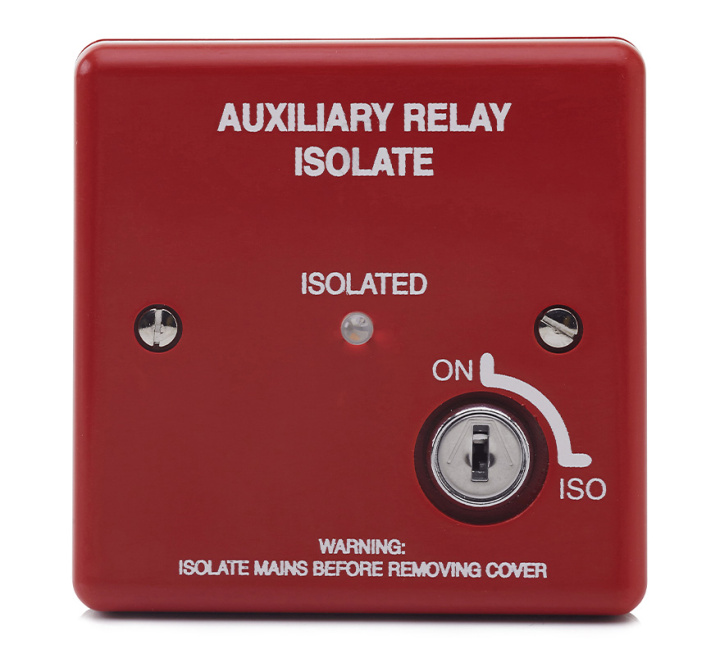

HAES Boxed 8A Relay With Isolate Key Switch (Red) (BRISOL-R)
Product Details for HAES Boxed 8A Relay With Isolate Key Switch (Red) (BRISOL-R)
The HAES BRISOL-R is a boxed, double pole, 24v (nominal) change over relay with key switch. Suitable for a variety of low voltage, mains control and signalling purposes.
The coil is polarised and suppressed and may be used on monitored circuits.
The key switch can be used to isolate or operate the relay.
Key Features of the BRISOL-R |
|---|
| > 8 amp double pole relay > Contacts rated at 250v ac > Isolate key switch > Isolated LED indicator > Selectable internal buzzer > Option to use key switch to energise the relay > Red fire retardant ABS enclosure > Suitable for surface or flush fitting |
| Brand | HAES Technologies |
|---|---|
| Manufacturer Part No. | BRISOL-R |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | Red |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for HAES Boxed 8A Relay With Isolate Key Switch (Red) (BRISOL-R)
No questions yet. Be the first to ask the question!
Product Specification for HAES Boxed 8A Relay With Isolate Key Switch (Red) (BRISOL-R)
| Operating Voltage | 24v dc (nominal) |
| Contact Rating | 250v ac 8A, double pole changeover |
| Current Consumption | Normal: 0mA Isolated LED only: 5.3mA LED + buzzer: 7.8mA LED + relay: 12.1mA LED + relay + buzzer: 12.8mA Triggered: 18.3mA |
| Enclosure | ROHS compliant FR ABS - 87 W x 87 H x 44 D (mm) |
